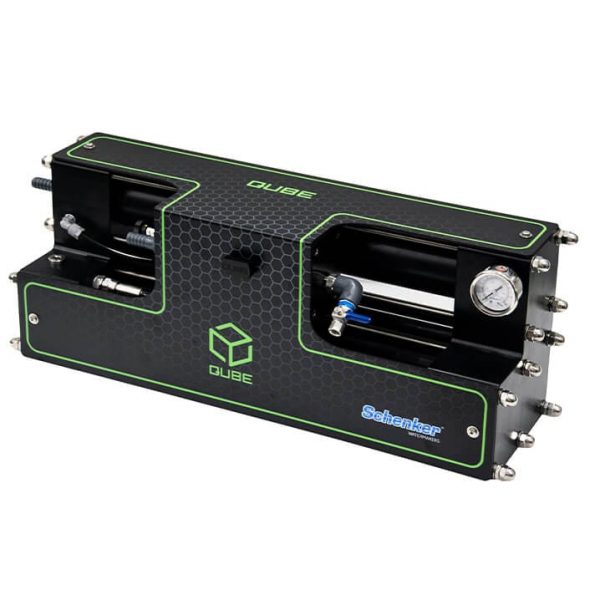

Qube 65 Basic
$11,300.00
QUBE 65 is the ideal watermaker for a crew of 5-6 people , in 40-50 feet sailboats or 35-45 feet powerboats or catamarans. Its capacity is 65 lit /h (17 Gal/h) ; its power consumption is 300 watts. 12/24/48 VDC power supply.
Please allow for 1-2 weeks from ordering to receive your unit.
GENERAL SPECS:
- Fresh Water Production: 65 liters / 17.2 gallons per hour
- Required Power Supply: 12 or 24 VDC
- Power Consumption: 300 watts
- Unit Weight: 31 Kg / 68.34Lb
- Uses Two Standard 21″ Membrane
FEATURED ADVANTAGES:
- Ultra quiet operation-no vibration
- Off the shelf non-proprietary membranes, pre filters and feed pump
- Industry leading efficiency; Produces one gallon using just 16.9 watt-hours
- No need for pressure monitoring or pressure adjustments
- Built-in redundancy via one switch manual control
- Worldwide service support
INCLUDES:
- Watermaker Group with Energy Recovery Pump and Membrane
- Feed pump
- 5 micron filter with Accumulator
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water 1/4″ line-30ft
- Remote panel
- Installation hardware (assortment of fittings and screws)
- Owners manual
STANDARD REMOTE PANEL FEATURES:
- Remote start/stop.
- Push button fresh water flushing.
- Automatic fresh water flushing via builtin seven day timer.
- Builtin timer to set production runs of 1, 2 or 3 hours with automatic fresh water final flushing.
WATERMAKER GROUP:

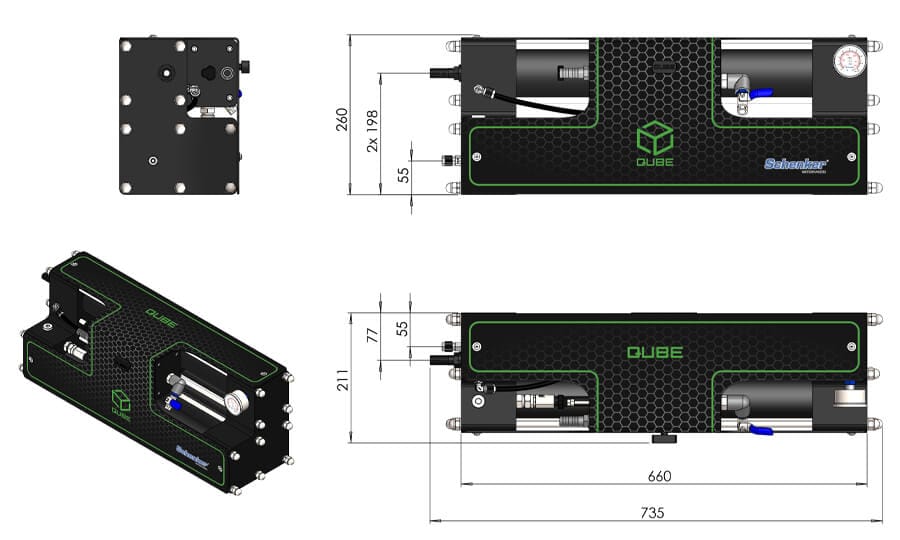

Overall Dimensions:
STANDARD REMOTE PANEL DIMENSIONS:
ZEN WATERMAKER SCHEMATIC:
| Voltage | 12V, 24V |
|---|
