Smart 100 Basic
$13,700.00
Smart 100 is the watermaker ideal for a crew of 6-8 people, in 45-55 feet sailboat or in 35-45 feet powerboat or catamaran. The capacity is 100 lit/h (26.4 Gal/h); consumption is 400 watt. 12-24 VDC or AC power supply.
GENERAL SPECS:
- Fresh Water Production: 100 liters / 26.4 gallons per hour
- Required Power Supply: 12, 24 or 48 VDC /110 OR 220V A/C
- Power Consumption: 400watts
- Unit Weight: 48kg – 105.82lb
- Uses One 40″ Membrane
FEATURED ADVANTAGES:
- Ultra quiet operation-no vibration
- Off the shelf non-proprietary membranes, pre filters and feed pump
- Industry leading efficiency; Produces one gallon using just 15.1 watt-hours
- No need for pressure monitoring or pressure adjustments
- Built-in redundancy via one switch manual control
- Worldwide service support
INCLUDES:
- Watermaker Group with Energy Recovery Pump and Membrane
- Feed pump
- 5 micron filter with Accumulator
- Active carbon filter with electrovalve
- Raw water strainer
- Filter canister wrench
- Check valve
- Fresh water 1/4″ line-30ft
- Remote panel-Optional Digital and Touch Panels
- Installation hardware (assortment of fittings and screws)
- Owners manual
STANDARD REMOTE PANEL FEATURES:
- Remote start/stop.
- Push button fresh water purge flushing.
- Automatic fresh water purge flushing via builtin seven day timer.
- Builtin timer to set production runs of 1, 2 or 3 hours with automatic fresh water final purge flushing.
WATERMAKER GROUP:

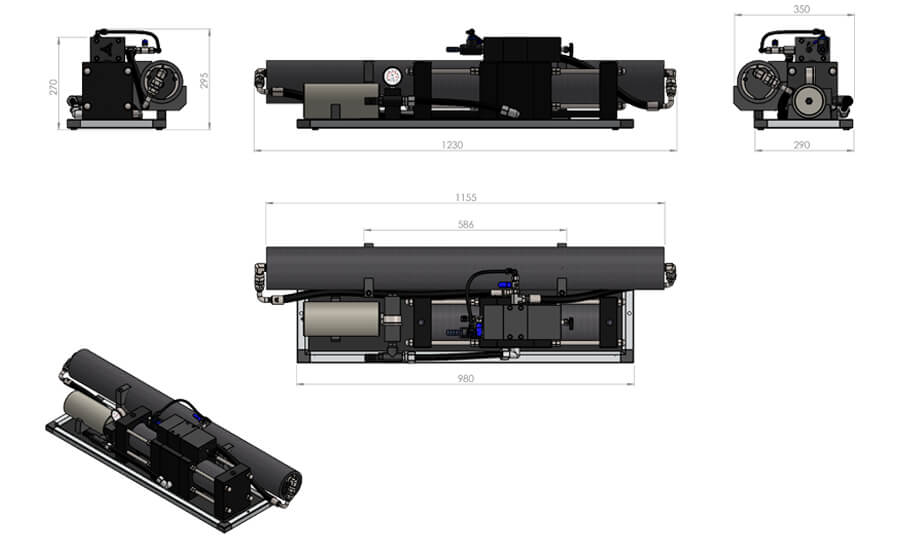

Overall Dimension
STANDARD PANEL DIMENSIONS:
WATERMAKER SCHEMATIC:
Downloadables Items:
SMART 100 Manual 12 / 24V
| Voltage | 12V, 24V, 48V, 110V, 220V |
|---|
